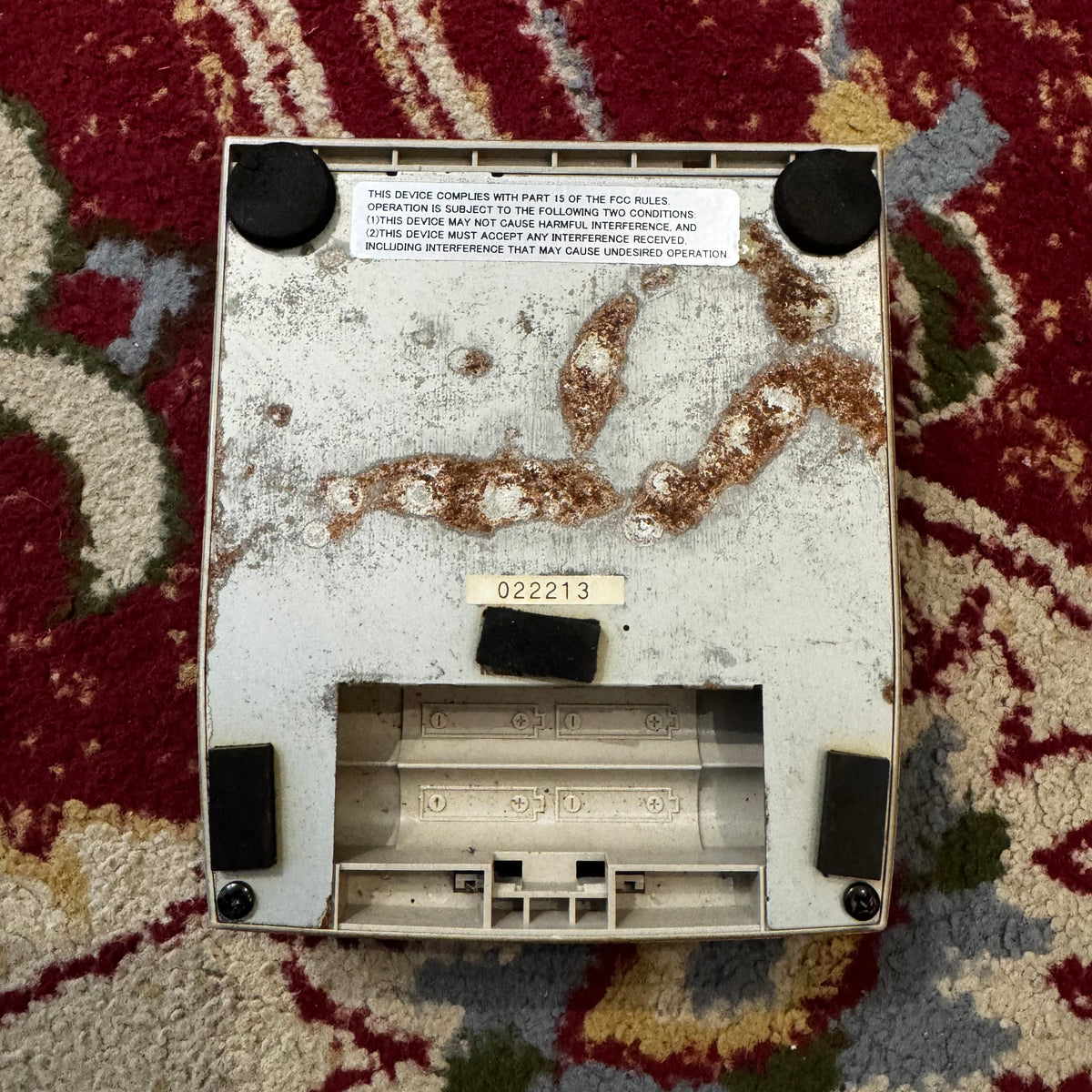

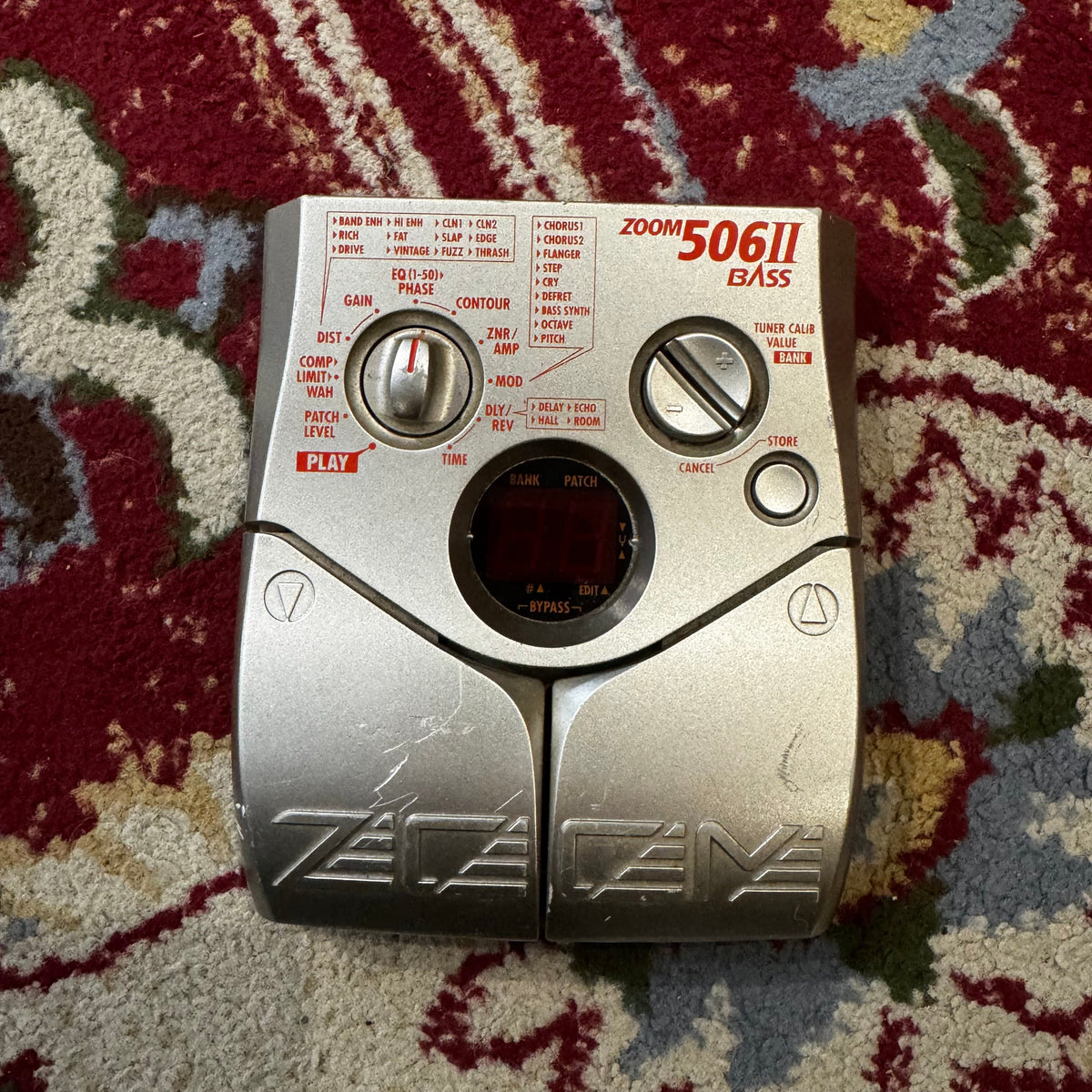

Zoom 506 II Bass Guitar Multi Effects Pedal (Pre-Owned)

Description

An updated iteration of the legendary original compact multi-effects unit, the Zoom 506 II Bass delivers a massive array of digital effects tailored specifically for bass guitar in a lightweight, ultra-portable enclosure. Powered by Zoom's proprietary DSP architecture, it combines up to 9 simultaneous effects—including rich bass distortions, amp simulation, modulation, synth/defretter effects, delays, and Zoom Noise Reduction (ZNR)—into customizable presets. With an intuitive rotary selector dial, dual foot switches for easy patch switching, an integrated auto-chromatic tuner, and input for external expression or bank control pedals, the 506 II Bass remains an accessible, versatile tool for practice, home recording, and live performance.

Specifications

• Built-in Effects: 33 total effects across 7 modules (up to 9 simultaneous effects including ZNR and Amp Simulator)
• Patch Memory: 36 user-rewritable patches (6 banks x 6 patches)
• Sampling Frequency: 31.25 kHz
• A/D Conversion: 16-bit 64x oversampling
• D/A Conversion: 16-bit 8x oversampling
• Display: 2-digit 7-segment LED
• Tuner: Integrated auto-chromatic tuner
• Inputs: 1/4" Monaural Phone Jack (Input impedance: 470 kΩ)
• Outputs: 1/4" Stereo Phone Jack (Combined Line / Headphones)
• Control Input: 1/4" Jack for optional Expression Pedal (FP01/FP02) or Footswitch (FS01)
• Power Requirements: 9V DC 300mA centre negative AC adapter (Zoom AD-0006) or 4 x AA (IEC R6) batteries (NOT INCLUDED)
• Battery Life: Continuous operation up to 28 hours (with alkaline batteries)
• Dimensions (D x W x H): 145 mm x 125 mm x 40 mm
• Weight: 280 g (without batteries)
