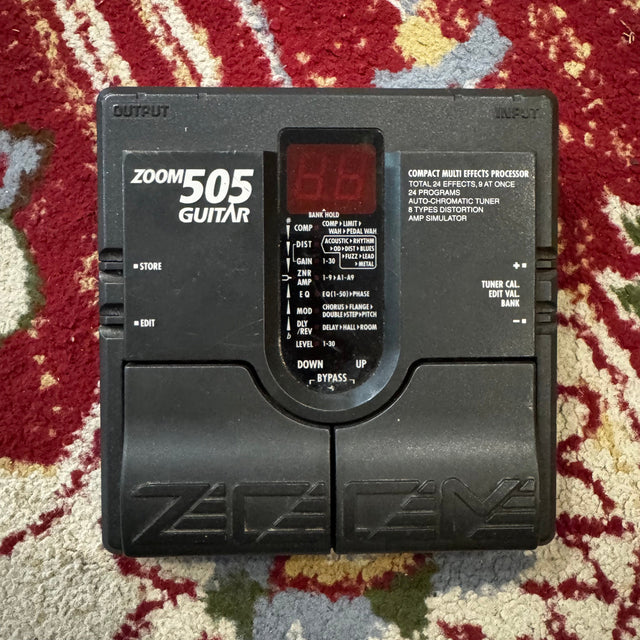

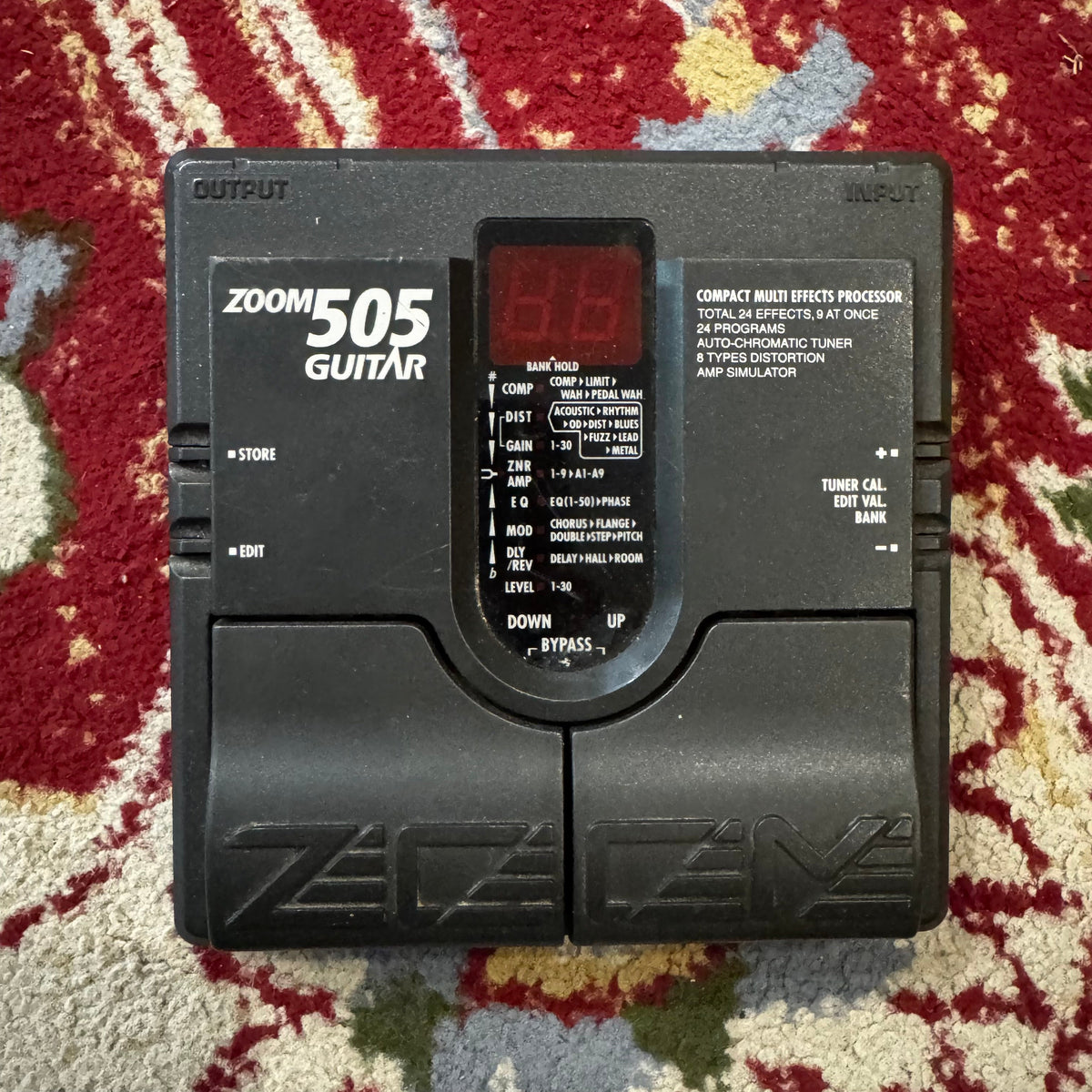

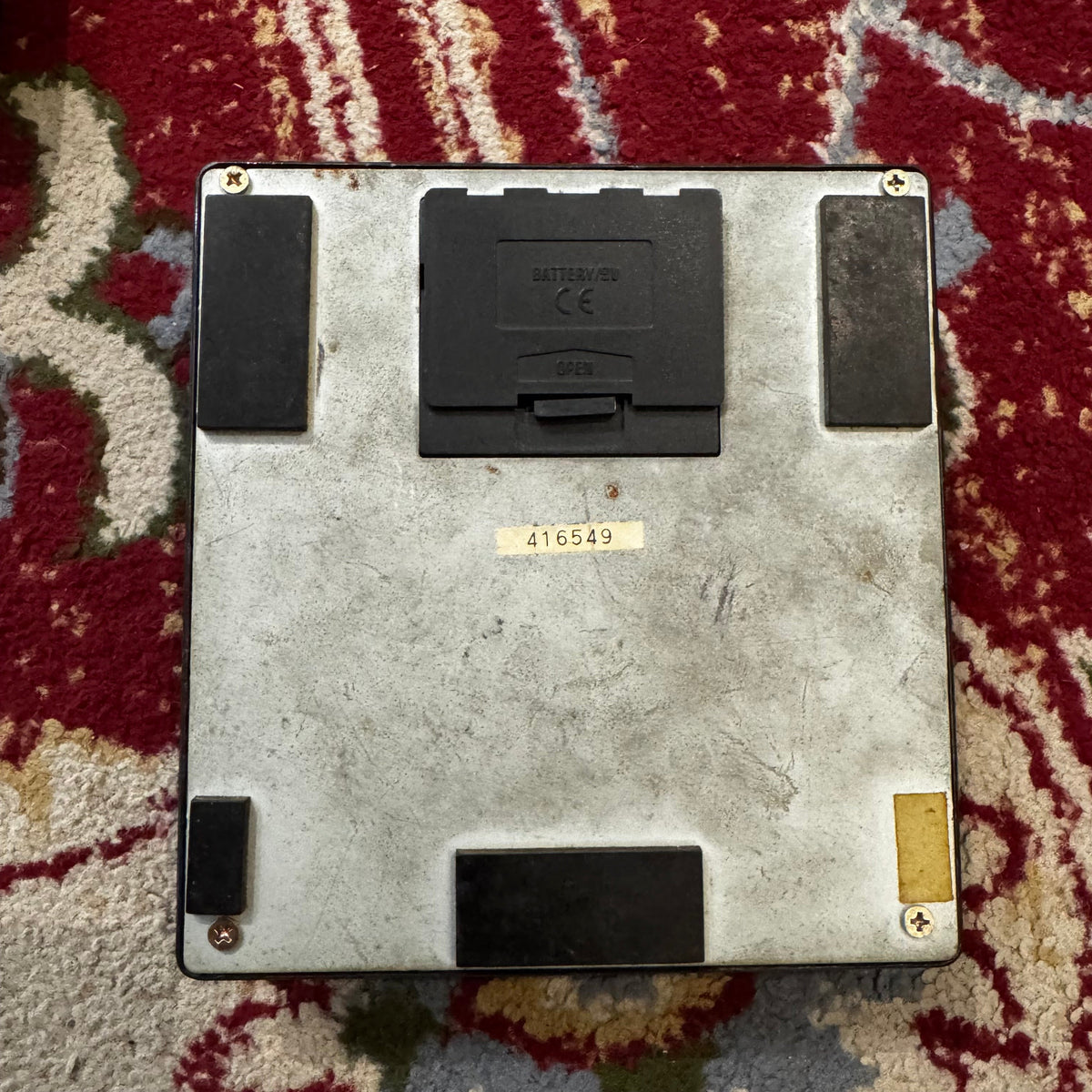

Zoom 505 Electric Guitar Multi Effects Pedal (Pre-Owned)

Description

The original Zoom 505 Guitar is a groundbreaking compact multi-effects pedal that pioneered full multi-effect processing in a lightweight, single stompbox footprint. Powered by Zoom's custom ZFx-2 DSP architecture, it combines up to 9 simultaneous effects—including dynamic overdrive and distortion, cabinet simulation, modulation, delays, reverbs, and Zoom Noise Reduction (ZNR)—into 24 user-programmable patches. Featuring a clear LED display, dual foot switches, an integrated auto-chromatic tuner, and expression pedal connectivity, the 505 delivers classic digital versatility for practice, jam sessions, and portable setups.

Specifications

• Built-in Effects: 24 total effect types across 7 modules (up to 9 simultaneous effects including ZNR and Amp Simulator)
• Patch Memory: 24 user-programmable patches (6 banks x 4 patches)
• DSP Architecture: Proprietary Zoom ZFx-2 chip
• Sampling Frequency: 31.25 kHz
• A/D Conversion: 18-bit, 128x oversampling
• D/A Conversion: 16-bit linear
• Display: 2-digit 7-segment LED
• Tuner: Integrated auto-chromatic guitar tuner
• Inputs: 1/4" Monaural Phone Jack (Input impedance: 470 kΩ)
• Outputs: 1/4" Stereo Phone Jack (Combined Line / Headphones)
• Control Input: 1/4" Jack for optional Expression Pedal (FP01) or Footswitch (FS01)
• Power Requirements: 9V DC 300mA centre negative AC adapter (Zoom AD-0006) or 9V (6LR61) battery (NOT INCLUDED)
• Dimensions (W x D x H): 147 mm x 157 mm x 48 mm
• Weight: 480 g (without battery)
