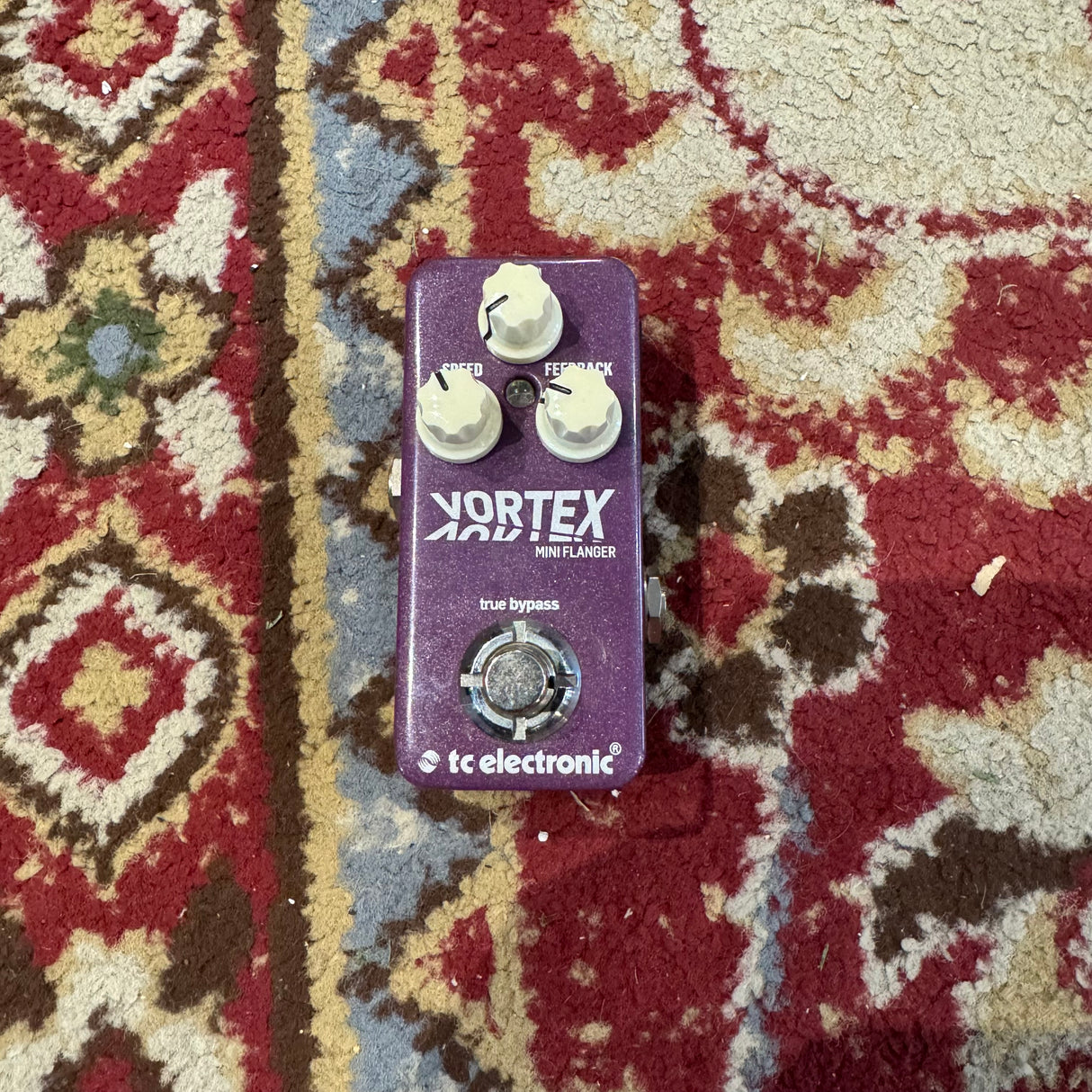

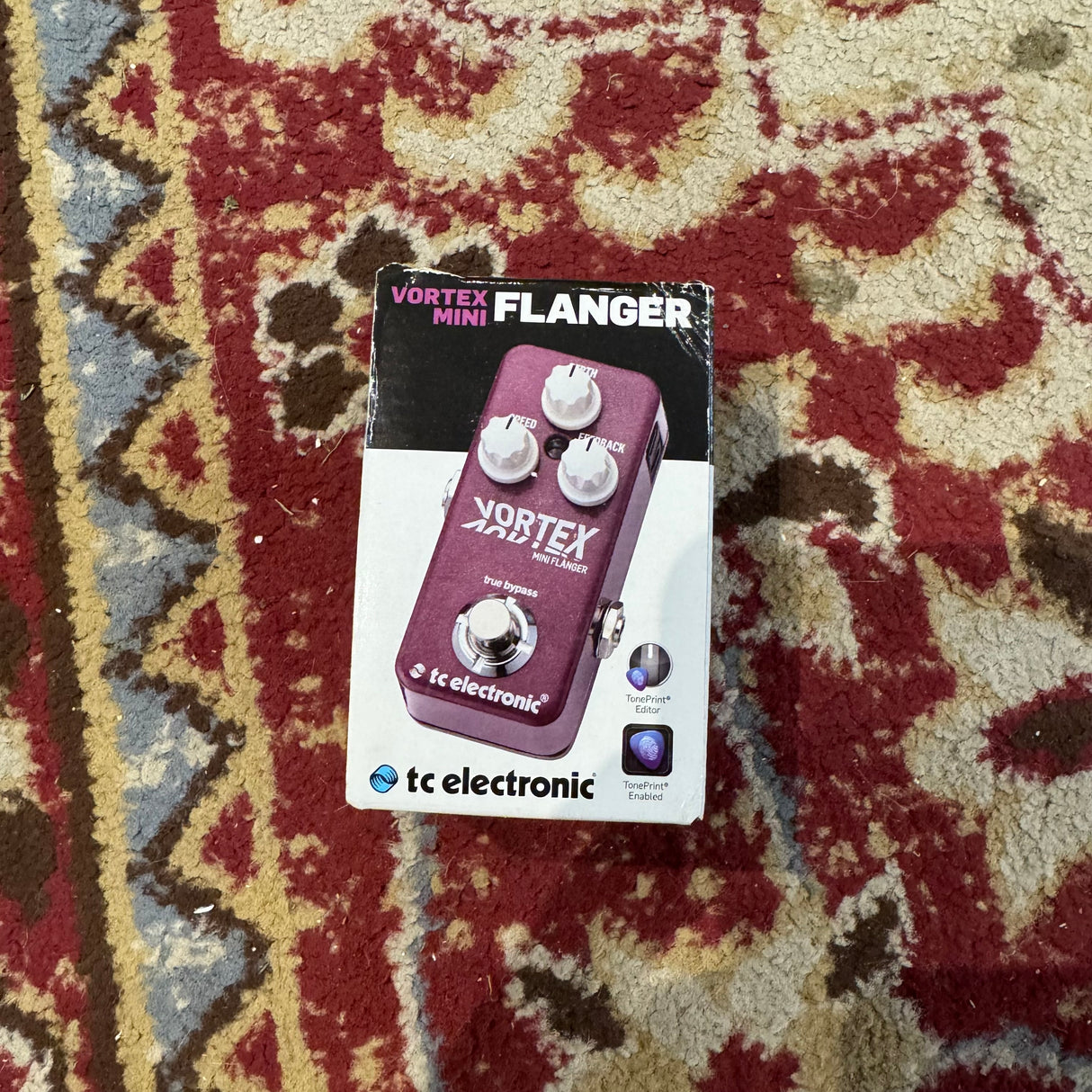

TC Electronic Vortex Mini Flanger Pedal (Pre-Owned)

Description

True Tone

With optimised headroom, a True Bypass or Buffered Bypass switch and Kill-Dry on/off, this pedal guarantees optimal tonal integrity and zero loss of tone. Whether the pedal is on or off, your dry sound is passed through the pedal unharmed thanks to an analog dry-through design.

Super Small

TC Electronic have packed a huge range of flange tones into a compact enclosure that fits comfortably in the palm of your hand, saving valuable pedalboard space while still delivering world-class flange sounds and full TonePrint functionality.

TonePrint Signature Effects

TC Electronic teamed up with top artists to create a series of Signature tones you can load for free. TonePrint lets you access many chorus/flange tones in one small pedal, and the TonePrint Editor gives full control over effect behaviour. You can load TonePrints directly via the app.

Infinite Flange!

The pedal includes a wide array of flange sounds, from roaring jet-flange to modern hi-fi swirls, offering everything from subtle movement to extreme psychedelic effects.

Features

• Wide range: from mach-3 jet sounds to psychedelic tape flanging
• Feedback control to intensify flange by routing modulated signal back into the effect
• TonePrint enabled - load signature Vortex Mini Flanger tones
• Free TonePrint Editor to create and edit custom flanger tones
• Beam enabled - send TonePrints to the pedal via the free TonePrint app
• Through-zero flanger for authentic vintage psychedelic flange
• Ultra-small footprint for minimal pedalboard real estate
• True-to-tone: true bypass and analogue dry-through
• Works with guitar and line level/FX loop signals
• Suitable for front-of-amp use or in the effects loop
• Requires 9V power supply (sold separately)

Specifications

General

• Controls: Speed, Depth, Feedback
• Signal circuitry: Analogue Dry-Through
• Power requirements: 9V DC, 100 mA, centre negative

Connections

• Input connector: Standard 1/4" jack (mono/TS)
• Input impedance: 1 MΩ
• Output connector: Standard 1/4" jack (mono/TS)
• Output impedance: 100 Ω
• USB port: Mini USB

Dimensions

• Height: 3.7" (93 mm)
• Width: 1.9" (48 mm)
• Depth: 1.9" (48 mm)
• Weight: approx. 270 g

Condition - Excellent

An item in excellent condition has been used but shows only minor cosmetic imperfections, such as light scratches or small dings. It functions perfectly and has been well-maintained.
