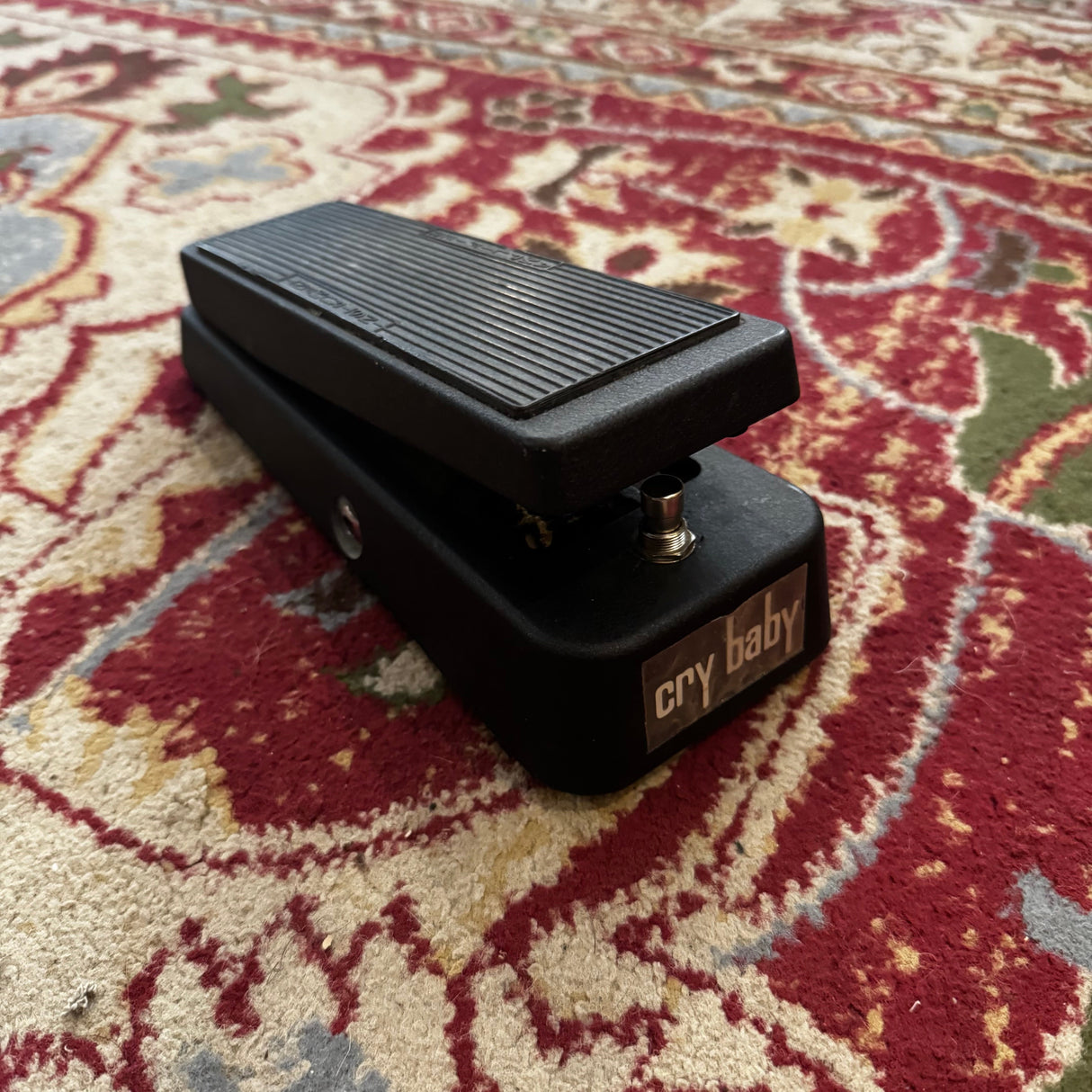

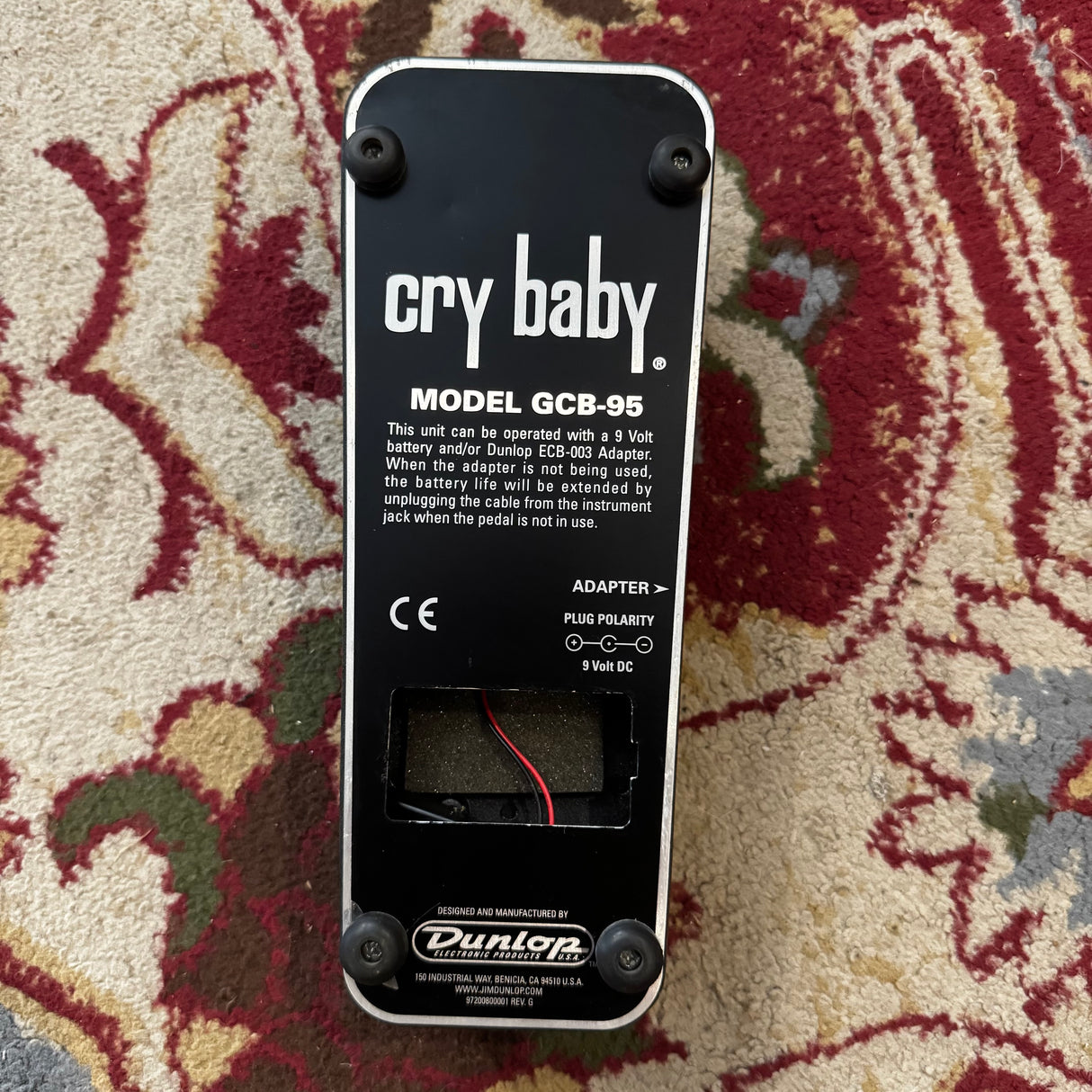

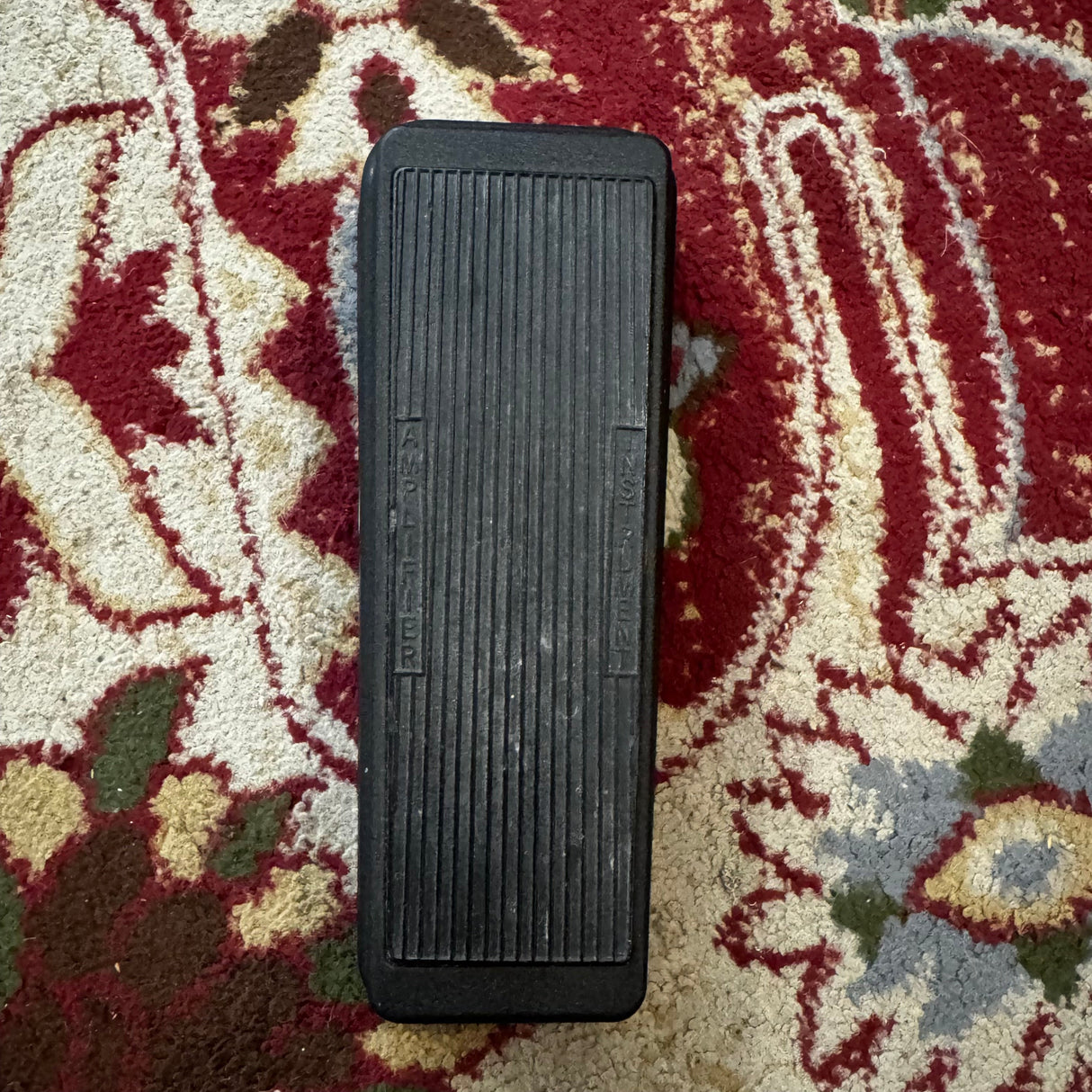

Dunlop GCB-95 Crybaby Wah Pedal (Pre-Owned)

Description

The Cry Baby Wah is the most iconic guitar effect in music history. When it hit the scene in 1966, it added a whole new layer of expression to the electric guitar—players such as Jimi Hendrix and Eric Clapton used the Cry Baby Wah to create some of the most timeless sounds in rock.

The GCB95 is a modern interpretation of that sound, featuring the lush, expressive character of the legendary red Fasel® inductor with a more focused high end and a more aggressive and accentuated wah sound. With a heavy-duty die-cast housing and a Hot Potz Potentiometer tested to one million cycles, the Cry Baby Wah will withstand years of playing.

Specifications

• Input Impedance: 800 kΩ
• Output Impedance: 10 kΩ
• Filter Parameter (Low Pass): 350 Hz ~ 450 Hz
• Filter Parameter (High Pass): 1.5 kHz ~ 2.5 kHz
• Maximum Level (Input): -8.0 dBV
• Maximum Level (Output): +10 dBV
• Maximum Gain (Heel Down): +19.5 dB
• Maximum Gain (Toe Down): +19 dB
• Signal to Noise Ratio (Heel Down): 98 dBV
• Signal to Noise Ratio (Toe Down): 89 dBV
• Current Draw: 900 µA
• Power Options: Single 9V battery, Dunlop ECB003 AC adapter (ECB003E in Europe), or Dunlop DCB10 DC Brick power supply
